BT400ME
Adjustable speed type peristaltic pump is cost-effective, high reliability, widely used in industrial bulk transmission, chemical, pharmaceutical and other industries. It can also be used in harsh environments, and has wealth of external control.
Flow range:0.175-13000ml/min
Max channel:4
1. Three-digit LED display shows motor rpm, with full speed function.
2. Using "double CPU" control, drive and control are separated.
3. These precision drives offer analog remote control options such as capacitance sensor, liquid level sensor, photoelectric sensor and foot switch -ideal for automated process applications.
4. Using the stepper motor to control speed, high precision and is not affected by the change of load, large torque, low power consumption, strong adaptability.
5. Excellent driving circuit performance, good heat dissipation, low noise, stable running, with power off memory function. Conformal coating is used on the circuit board, anti interference characteristics and wide voltage design, suitable for complex environment.
6. BT-M Drives can accept multiple pump heads.
Drive model: BT400ME
Speed range: 0.1-400rpm
Speed resolution: 0.1rpm(≤100rpm); 1rpm(>100rpm)
Precision: ±0.5%
Display: Three-digit LED
Operate mode: Toggle switch + Digital control knob
External control: 0-5V (standard)、0-10V (optional)、4-20mA (standard), 0-10K (standard)
External control type: Start /stop, Direction change【TTL 5V (standard), TTL 12V (optional), TTL 24V (optional)
Port output: DC12V Power Output; DC5V TTL Output (optional)
Communication interface: RS232, RS485 (Start/stop, Direction change, speed control)
Power supply: AC220V±10%, 50Hz/60Hz(standard); AC110V±10%, 50Hz/60Hz; AC380V±10%, 50Hz/60Hz(optional)
Power consumption: ≤110W
Operating condition: Temperature, 0℃ to 40℃; Relative humidity < 80%
IP rating: IP31
Drive weight: 18kg

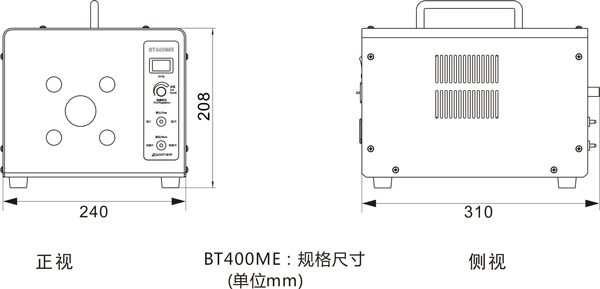

Drive size: Length * Width * High: 400mm*417mm*208mm
Drive model | Pump head | Using tubing (bore*wall mm) | Flow range (mL/min) per channel |
BT400ME | YZ15Ⅲ MC15Z-4 | 13# | 0.008-32 |
14# | 0.028-114 | ||
19# | 0.053-214 | ||
16# | 0.088-354 | ||
25# | 0.188-754 | ||
17# | 0.31-1240 | ||
18# | 0.4-1600 | ||
YZ25Ⅲ MC25Z-4 | 15# | 0.175-700 | |
24# | 0.27-1080 | ||
35# | 0.385-1540 | ||
36# | 0.5-2000 | ||
SPE45 | 70# | 1.35-5400 | |
88# | 2.87-11500 | ||
89# | 3.23-12900 | ||
KZ | 70# | 1.21-4800 | |
88# | 2.43-9700 | ||
73# | 1.25-5000 | ||
82# | 2.58-10300 |
